End caps for metal sheaths

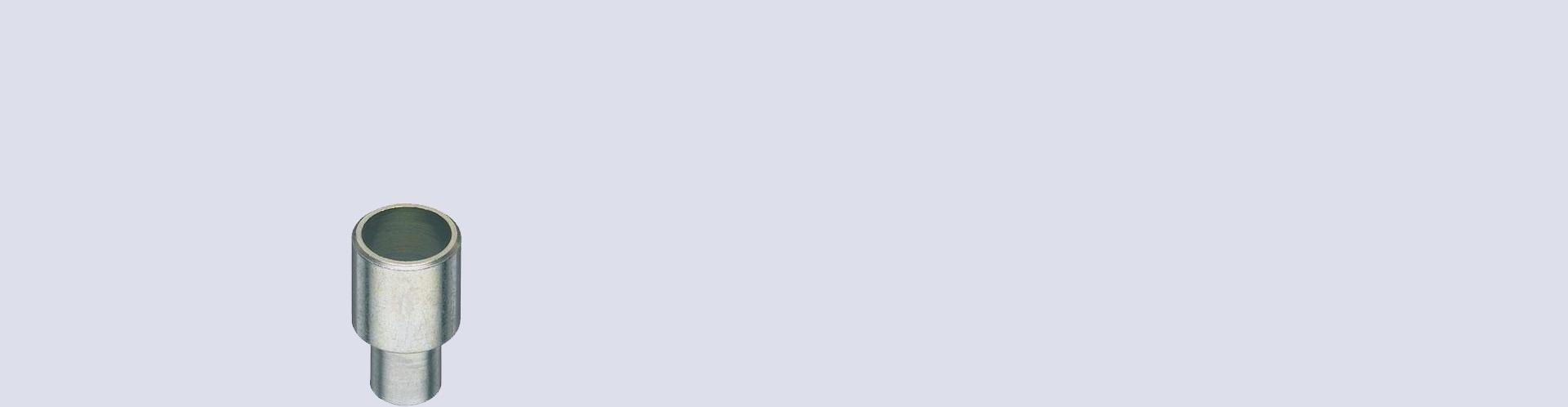

Shouldered neckline stopper
The cutaway butts provide a more precise fit. To be completed with a hexagonal screw to have a possible adjustment.
| A mm | B mm | D mm | D mm | E mm | F mm | G mm | Previous Ref. | New Ref. |
|---|---|---|---|---|---|---|---|---|
| 5,5 | 11,0 | 3,9 | 1,9 | 4,9 | 7,7 | 2,5 | CAVC55511 | SA000064 |
| 6,0 | 10,0 | 3,3 | 3,0 | 4,9 | 5,3 | 2,2 | CAVC56100 | SA000066 |
| 6,0 | 9,5 | 3,7 | 3,5 | 5,0 | 4,4 | 1,9 | CAVC56095 | SA000065 |
| 7,0 | 9,5 | 4,0 | 3,5 | 5,1 | 4,5 | 2,5 | CAVC57093 | SA000067 |
| 8,0 | 13,0 | 6,0 | 3,5 | 6,1 | 7,0 | 2,5 | CAV058133 | |
| 8,0 | 16,0 | 5,9 | 7,0 | 5,3 | 7,0 | 2,7 | CAVC58160 | SA000072 |
| 9,0 | 16,0 | 6,0 | 7,0 | 6,6 | 7,0 | 4,0 | CAVC59080 | SA000078 |
| 9,0 | 16,0 | 6,0 | 7,0 | 7,3 | 7,0 | 4,0 | CAVC59085 | SA000079 |
