Stainless steel micro-stranded cable
Industrial microcables

Stainless steel micro strands

AISI 316 stainless steel microcables

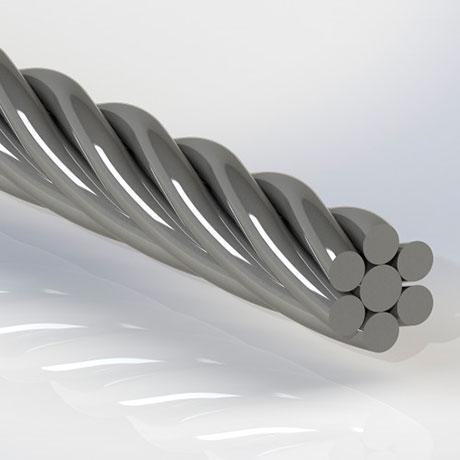

Construction cable 1 x 7

The construction cable 1X7 is made of 7 wires. La nuance d’inox est en AISI 316. This construction cable 1x7 is also available with deep ultrasonic cleaning for medical or industrial applications.

Nominal diameter
mm
Min. breaking load
N
Min. weight
kg/1000 m
Previous Ref.New Ref.
0,096,90,040CG 007009LI000001
0,1213,30,073CG 007012LI000002
0,1520,00,113CG 007015LI000003
0,18300,163 ,CG 007018LI000004
0,21410,210CG 007021LI000005
0,24530,280CG 007024LI000006
0,27700,360CG 007027LI000007
0,30850,440CG 007030LI000008
0,331000,540CG 007033LI000009
0,361200,640CG 007036LI000010
0,391400,750CG 007039LI000011
0,452001,000CG 007045LI000012
0,512801,250CG 007051LI000013
0,573501,600CG 007057LI000014
0,604001,800CG 007060LI000015
0,695202,400CG 007069LI000016
0,756002,800CG 007075LI000017

AISI 316 stainless steel microcables

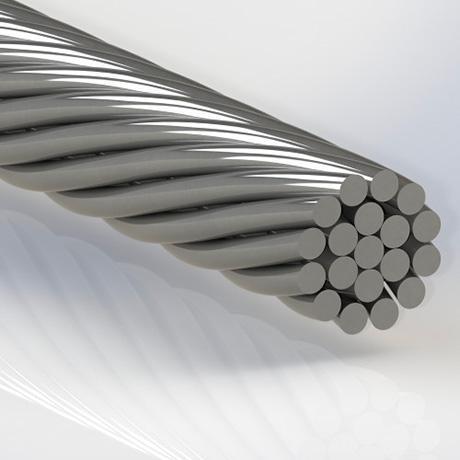

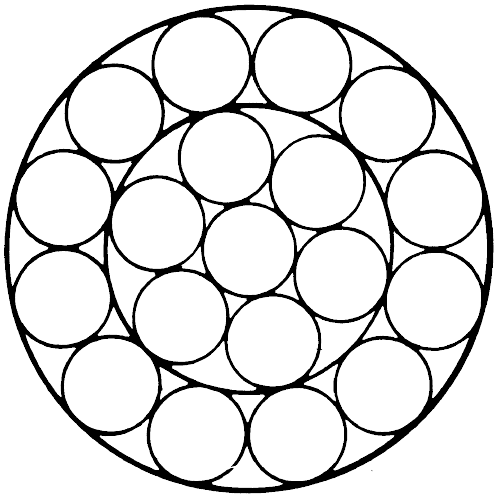

Construction 1 x 19

The construction 1X19 is composed of 19 wires. The stainless steel grade is AISI 316. This product is also available with ultrasonic deep cleaning for medical or industrial applications.

Nominal diameter
mm
Min. breaking load
N
Weight
kg/1000 m
Previous Ref.New Ref.
0,15250,110CG 019015LI000031
0,20440,200CG 019020LI000032
0,25690,300CG 019025LI000033
0,30980,440CG 019030LI000034
0,351350,600CG 019035LI000035
0,401770,780CG 019040LI000036
0,452240,970CG 019045LI000037
0,502751,200CG 019050LI000038
0,553301,450CG 019055LI000039
0,603921,750CG 019060LI000040
0,654612,070CG 019065LI000041
0,756182,760CG 019075LI000042
0,857953,500CG 019085LI000043
1,0010794,900CG 019100LI000044

All stranded cables and ropes are made with 1770 N/mm2 strength wire unless otherwise stated.
